INSTALLATION

Installation Manual

Five Easy Steps

1

Attach this fitting to a cold water source

2 Attach garden hose to side of tank (75 GPD Large Capacity Systems attach to the top)

3 Run 1/4 hose to floor drain, sink or drain trap

4 Turn on water supply to system

5 Allow 48 hours to fill over halfway then plug in and use

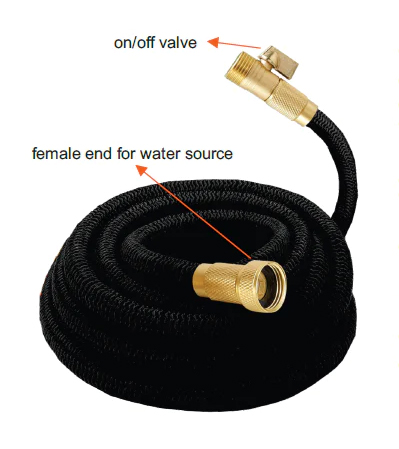

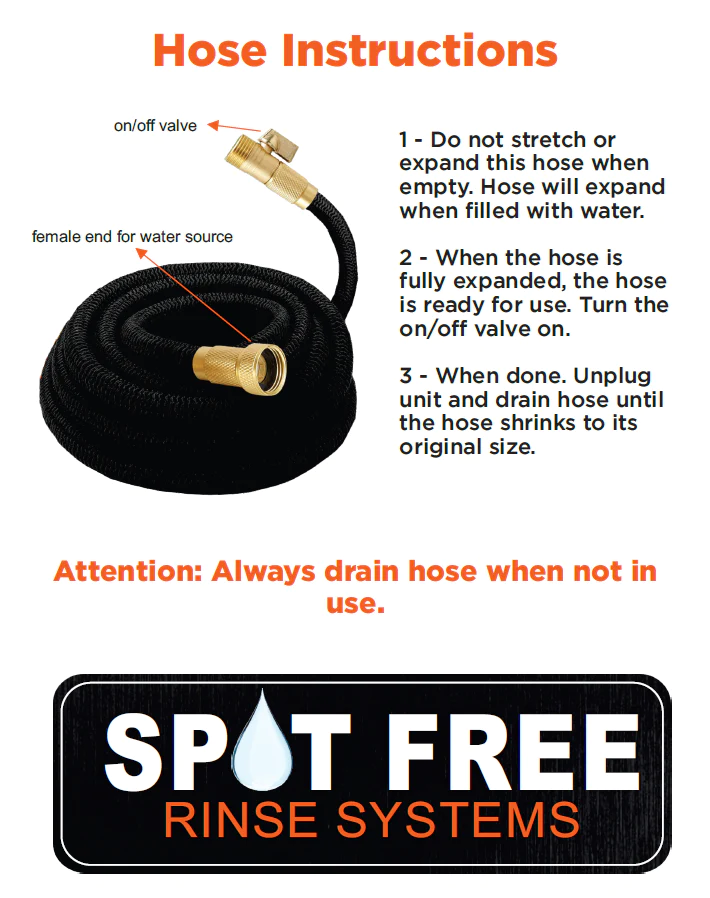

Hose Instructions

1- Do not stretch or expand this hose when empty. Hose will expand when filled with water.

2- When the hose is fully expanded, the hose is ready for use. Turn the on/off valve on.

3- When finished, unplug unit and drain hose until the hose shrinks to its original size.

Attention: Always drain hose when not in use.

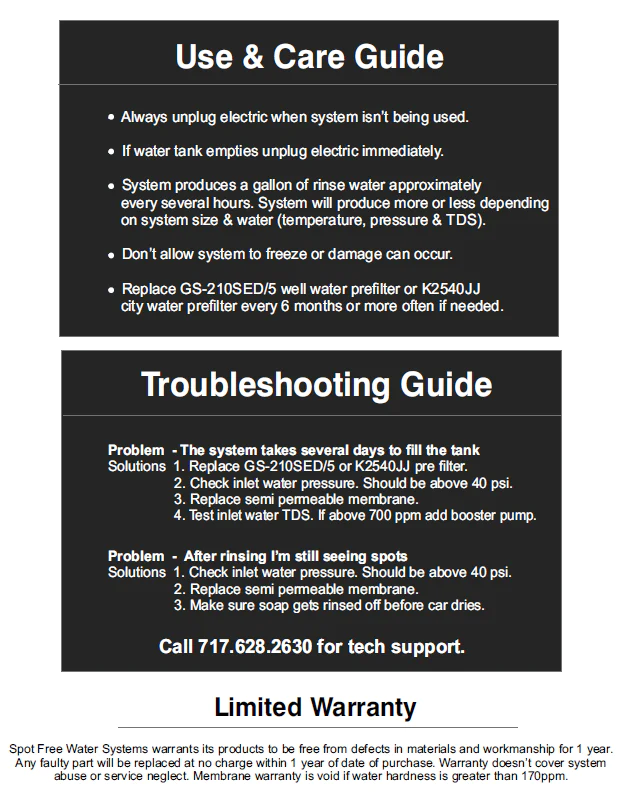

Use & Care Guide

Always unplug electric when system isn’t being used.
If water tank empties unplug electric immediately.
System produces a gallon of rinse water approximately every several hours. System will produce more or less depending on system size & water (temperature, pressure & TDS).
Don’t allow system to freeze or damage can occur.
Replace GS-210SED/5 well water prefilter or K2540JJ city water prefilter every 6 months or more often if needed.

Limited Warranty
Spot Free Water Systems warrants its products to be free from defects in materials and workmanship for 1 year. Any faulty part will be replaced at no charge within 1 year of date of purchase. Warranty doesn’t cover system abuse or service neglect. Membrane warranty is void if water hardness is greater than 170ppm.

Troubleshooting Guide

Problem – The system takes several days to fill the tank

Solutions

Replace GS-210SED/5 or K2540JJ pre filter.
Check inlet water pressure. Should be above 40 psi.
Replace semi permeable membrane.
Test inlet water TDS. If above 700 ppm add booster pump.

Problem – After rinsing I’m still seeing spots

Solutions

Check inlet water pressure. Should be above 40 psi.
Replace semi permeable membrane.
Make sure soap gets rinsed off before car dries.
